Sticky Notes#

Sticky Notes allow you to annotate and comment on your workflows.

n8n recommends using Sticky Notes heavily, especially on template workflows, to help other users understand your workflow.

Screenshot of a basic workflow with an example sticky note

Create a Sticky Note#

Sticky Notes are a core node. To add a new Sticky Note:

  1. Open the nodes panel.
  2. Search for note.
  3. Click the Sticky Note node. n8n adds a new Sticky Note to the canvas.

Edit a Sticky Note#

  1. Double click the Sticky Note you want to edit.
  2. Write your note. This guide explains how to format your text with Markdown. n8n uses markdown-it, which implements the CommonMark specification.
  3. Click away from the note, or press Esc, to stop editing.

Change the color#

To change the Sticky Note color:

  1. Hover over the Sticky Note
  2. Select Change color Change Sticky Note color icon

Sticky Note positioning#

You can:

  • Drag a Sticky Note anywhere on the canvas.
  • Drag Sticky Notes behind nodes. You can use this to visually group nodes.
  • Resize Sticky Notes by hovering over the edge of the note and dragging to resize.

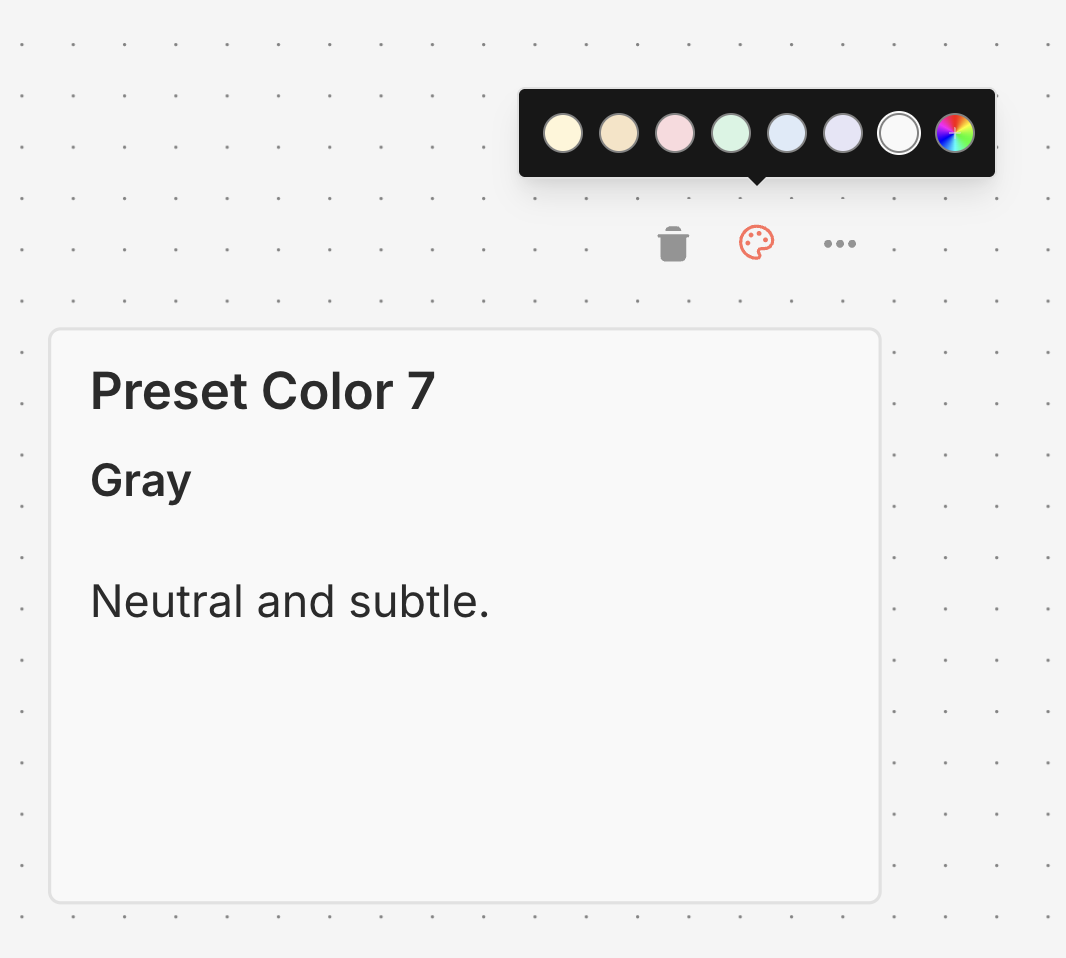

  • Change the color: select Options Options icon to open the color selector.

Writing in Markdown#

Sticky Notes support Markdown formatting. This section describes some common options.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
The text in double asterisks will be **bold**

The text in single asterisks will be *italic*

Use # to indicate headings:
# This is a top-level heading
## This is a sub-heading
### This is a smaller sub-heading

You can add links:
[Example](https://example.com/)

Create lists with asterisks:

* Item one
* Item two

Or created ordered lists with numbers:

1. Item one
2. Item two

For a more detailed guide, refer to CommonMark's help. n8n uses markdown-it, which implements the CommonMark specification.

Make images full width#

You can force images to be 100% width of the sticky note by appending #full-width to the filename:

1
![Source example](https://<IMAGE-URL>/<IMAGE-NAME>.png#full-width)
