Line#

The Line node allows you to automate work in Line, and integrate Line with other applications. n8n has built-in support for a wide range of Line features, including sending notifications.

On this page, you'll find a list of operations the Line node supports and links to more resources.

Credentials

Refer to Line credentials for guidance on setting up authentication.

Examples and templates

For usage examples and templates to help you get started, take a look at n8n's Line integrations list.

Basic Operations#

  • Notification
    • Sends notifications to users or groups

Example Usage#

This workflow allows you to send daily weather updates via a notification using the Line node. You can also find the workflow on n8n.io. This example usage workflow uses the following nodes. - Cron - OpenWeatherMap - Line

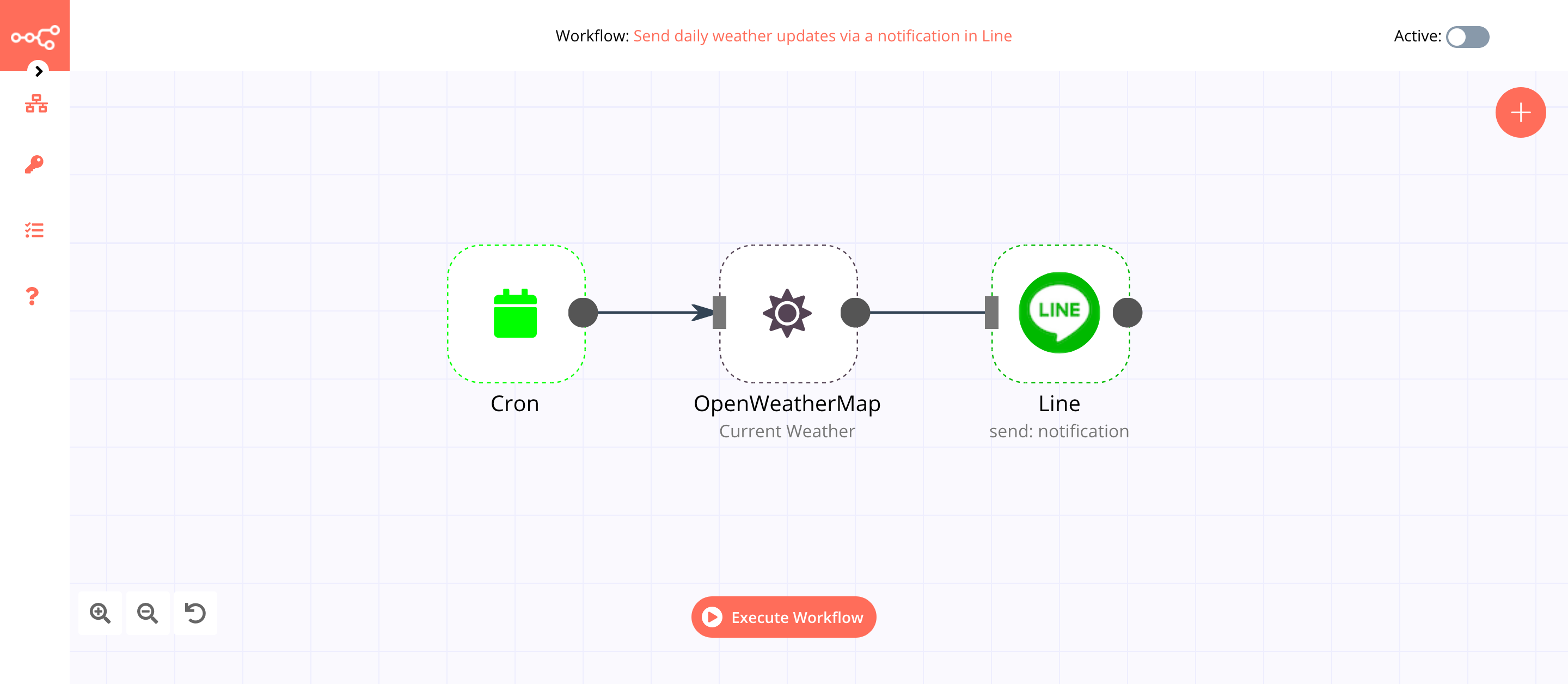

The final workflow should look like the following image.

A workflow with the Line node

1. Cron node#

The Cron node will trigger the workflow daily at 9 AM.

  1. Click on Add Cron Time.
  2. Set hours to 9 in the Hour field.
  3. Click on Execute Node to run the node.

In the screenshot below, you will notice that the Cron node is configured to trigger the workflow every day at 9 AM.

Using the Cron node to trigger the workflow daily at 9 am

2. OpenWeatherMap node (Current Weather)#

This node will return data about the current weather in Berlin. To get the weather updates for your city, you can enter the name of your city instead.

  1. First of all, you'll have to enter credentials for the OpenWeatherMap node. You can find out how to do that here.
  2. Enter berlin in the City field.
  3. Click on Execute Node to run the node.

In the screenshot below, you will notice that the node returns data about the current weather in Berlin.

Using the OpenWeatherMap node to get weather updates for Berlin

3. Line node (send: notification)#

This node will send a notification with the weather update.

  1. First of all, you'll have to enter credentials for the Line node. You can find out how to do that here.

  2. Click on the gears icon next to the Message field and click on Add Expression.

  3. Enter the following message in the Expression field: Hey! The temperature outside is {{$node["OpenWeatherMap"].json["main"]["temp"]}}°C..

  4. Click on Execute Node to run the node.

In the screenshot below, you will notice that the node sends a notification with the weather update.

Using the Line node to send weather updates via a notification

Activate workflow for production

This example workflow uses the Cron node, which is a Trigger node. You'll need to save the workflow and then click on the Activate toggle on the top right of the screen to activate the workflow. Your workflow will then be triggered as specified by the settings in the Cron node.
