Processing different data types#

In this chapter, you will learn how to process different types of data using n8n core nodes.

HTML and XML data#

You're most likely familiar with HTML and XML.

HTML vs. XML

HTML is a markup language used to describe the structure and semantics of a web page. XML looks similar to HTML, but the tag names are different, as they describe the kind of data they hold.

If you need to process HTML or XML data in your n8n workflows, use the HTML node or the XML node.

Use the HTML node to extract HTML content of a webpage by referencing CSS selectors. This is useful if you want to collect structured information from a website (web-scraping).

HTML Exercise#

Let's get the title of the latest n8n blog post:

  1. Use the HTTP Request node to make a GET request to the URL https://blog.n8n.io/ (this endpoint requires no authentication).
  2. Connect an HTML node and configure it to extract the title of the first blog post on the page.
    • Hint: If you're not familiar with CSS selectors or reading HTML, the CSS selector .item-title a should help!
Show me the solution
  1. Configure the HTTP Request node with the following parameters:
    • Authentication: None
    • Request Method: GET
    • URL: https://blog.n8n.io/ The result should look like this:

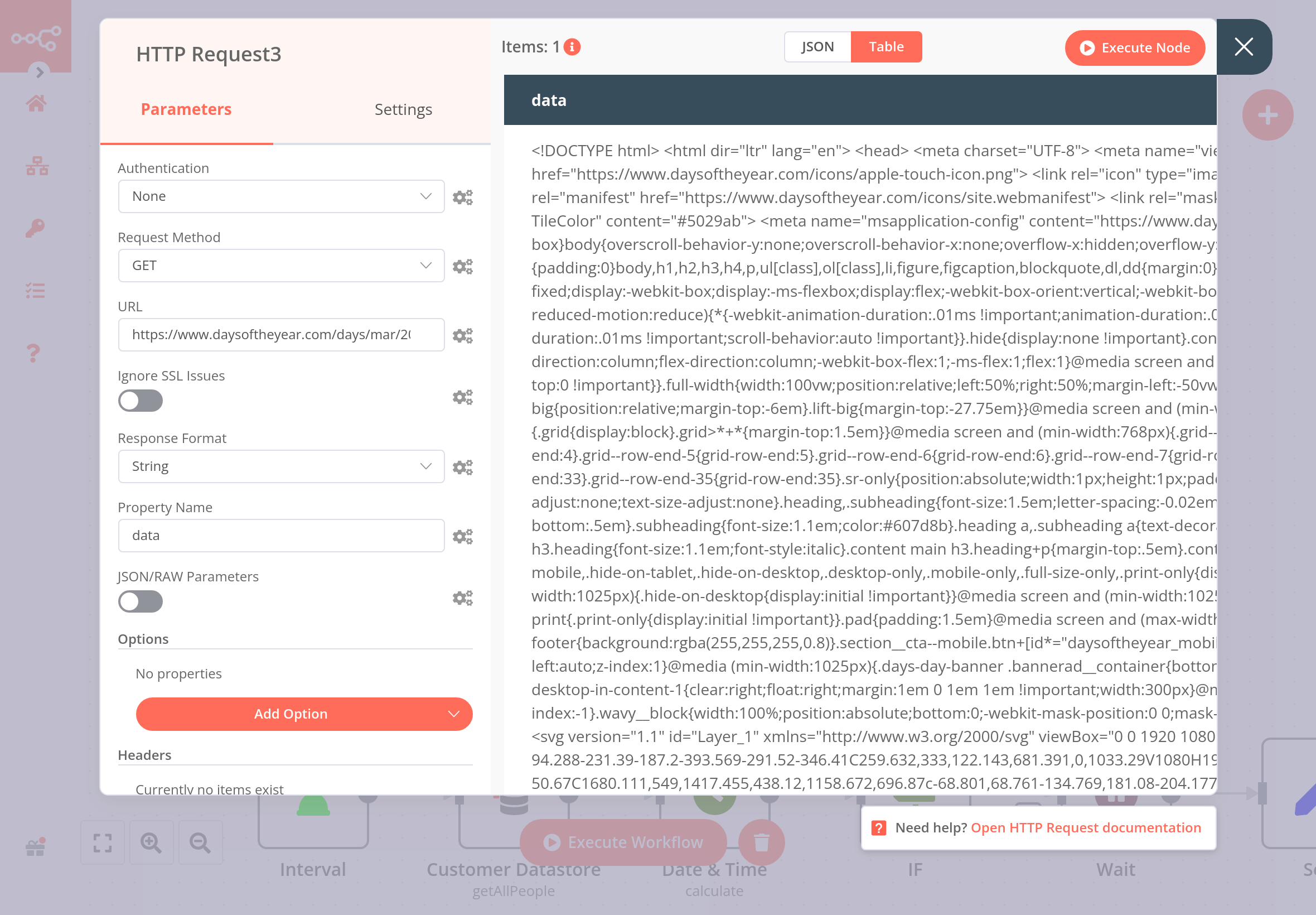

Result of HTTP Request node
Result of HTTP Request node

  1. Connect an HTML node to the HTTP Request node and configure the former's parameters:
    • Operation: Extract HTML Content
    • Source Data: JSON
    • JSON Property: data
    • Extraction Values:
      • Key: title
      • CSS Selector: .item-title a
      • Return Value: HTML

You can add more values to extract more data.

The result should look like this:

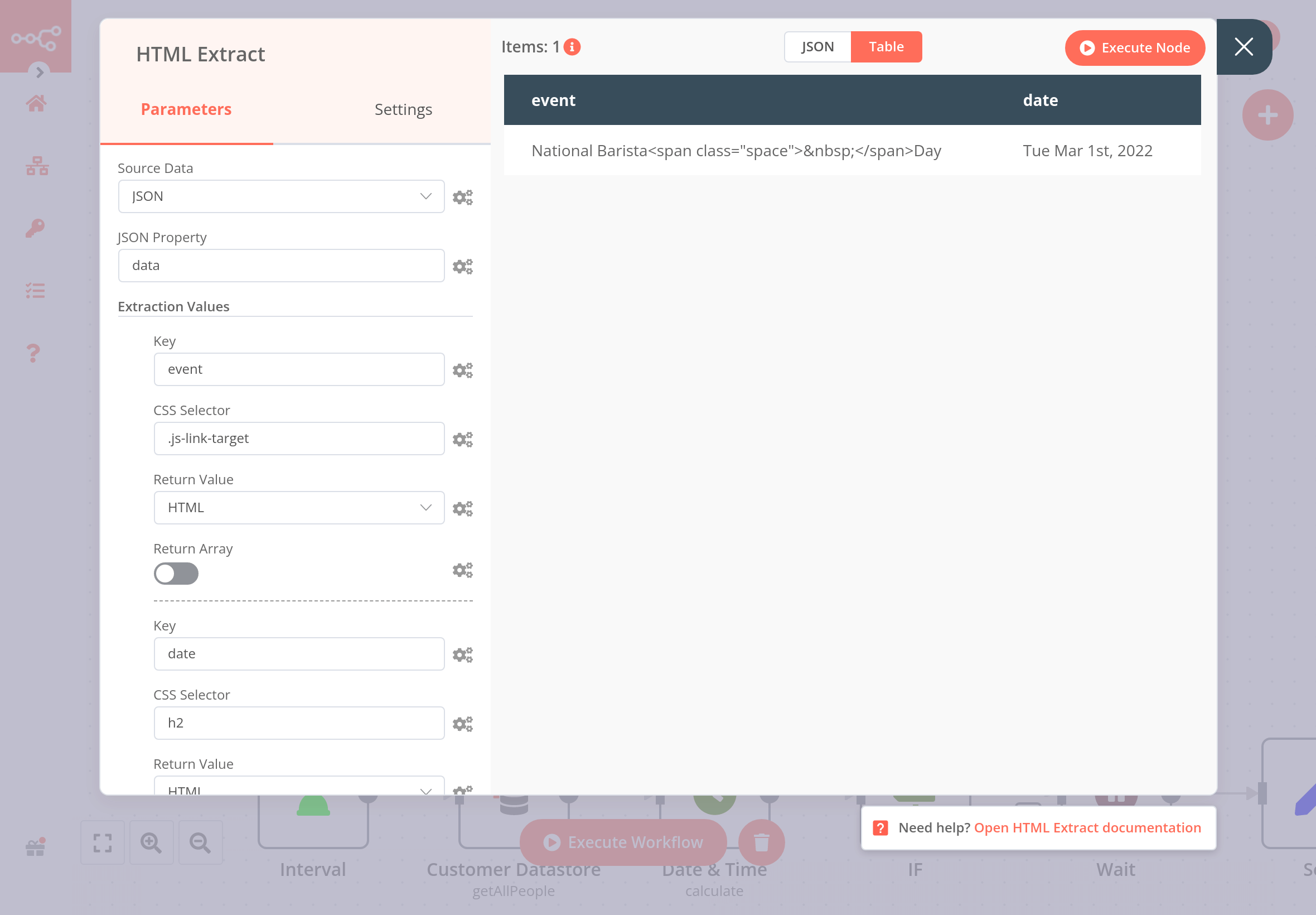

Result of HTML Extract node
Result of HTML Extract node

Use the XML node to convert XML to JSON and JSON to XML. This operation is useful if you work with different web services that use either XML or JSON and need to get and submit data between them in the two formats.

XML Exercise#

In the final exercise of Chapter 1, you used an HTTP Request node to make a request to the Quotable API. In this exercise, we'll return to that same API but we'll convert the output to XML:

  1. Add an HTTP Request node that makes the same request to the Quotable API at https://api.quotable.io/quotes.
  2. Use the XML node to convert the JSON output to XML.
Show me the solution
  1. To get the quotes from the Quotable API, execute the HTTP Request node with the following parameters:
    • Authentication: None
    • Request Method: GET
    • URL: https://api.quotable.io/quotes
  2. Connect an XML node to it with the following parameters:
    • Mode: JSON to XML
    • Property name: data

The result should look like this:

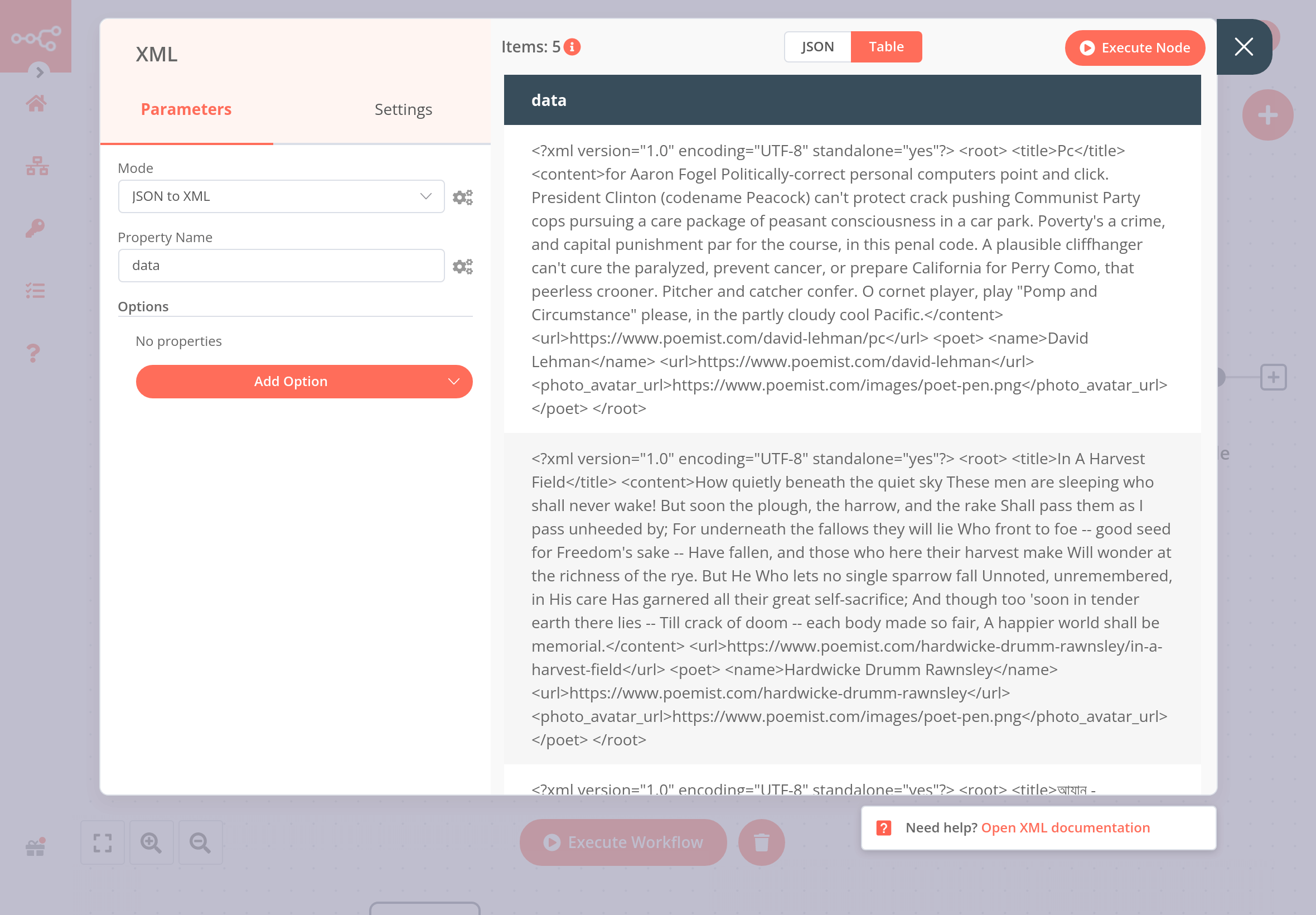

Table view of XML Node (JSON to XML)
XML node (JSON to XML) – Table View

To transform data the other way around, select the mode XML to JSON.

Date, time, and interval data#

Date and time data types include DATE, TIME, DATETIME, TIMESTAMP, and YEAR. The dates and times can be passed in different formats, for example:

  • DATE: March 29 2022, 29-03-2022, 2022/03/29
  • TIME: 08:30:00, 8:30, 20:30
  • DATETIME: 2022/03/29 08:30:00
  • TIMESTAMP: 1616108400 (Unix timestamp), 1616108400000 (Unix ms timestamp)
  • YEAR: 2022, 22

There are a few ways you can work with dates and times:

  • Use the Date & Time node to convert date and time data to different formats and calculate dates.
  • Use Schedule Trigger node to schedule workflows to run at a specific time, interval, or duration.

Sometimes, you might need to pause the workflow execution. This might be necessary if you know that a service doesn't process the data instantly or it's slow to return all the results. In these cases, you don't want n8n to pass incomplete data to the next node.

If you run into situations like this, use the Wait node after the node that you want to delay. The Wait node pauses the workflow execution and will resume execution:

  • At a specific time.
  • After a specified time interval.
  • On a webhook call.

Date Exercise#

Build a workflow that adds five days to an input date from the Customer Datastore node that you used before. Then, if the calculated date occurred after 1959, the workflow waits 1 minute before setting the calculated date as a value. The workflow should be triggered every 30 minutes.

To begin:

  1. Add the Customer Datastore (n8n training) node with the Get All People action selected. Return All.
  2. Add the Date & Time node to Round Up the created Date from the datastore to End of Month. Output this to field new-date. Include all input fields.
  3. Add the If node to check if that new rounded date is after 1960-01-01 00:00:00.
  4. Add the Wait node to the True output of that node and set it to wait for one minute.
  5. Add the Edit Fields (Set) node to set a new field called outputValue to a String containing new-date. Include all input fields.
  6. Add the Schedule Trigger node at the beginning of the workflow to trigger it every 30 minutes. (You can keep the Manual Trigger node for testing!)
Show me the solution
  1. Add the Customer Datastore (n8n training) node with the Get All People action selected.
    • Select the option to Return All.
  2. Add a Date & Time node connected to the Customer Datastore node. Select the option to Round a Date.
    • Add the created date as the Date to round.
    • Select Round Up as the Mode and End of Month as the To.
    • Set the Output Field Name as new-date.
    • In Options, select Add Option and use the control to Include Input Fields
  3. Add an If node connected to the Date & Time node.
    • Add the new-date field as the first part of the condition.
    • Set the comparison to Date &Time > is after
    • Add 1960-01-01 00:00:00 as the second part of the expression. (This should produce 3 items in the True Branch and 2 items in the False Branch)
  4. Add a Wait node to the True output of the If node.
    • Set Resume to After Time interval.
    • Set Wait Amount to 1.00.
    • Set Wait Unit to Minutes.
  5. Add an Edit Fields (Set) node to the Wait node.
    • Use either JSON or Manual Mapping Mode.
    • Set a new field called outputValue to be the value of the new-date field.
    • Select the option to Include Other Input Fields and include All fields.
  6. Add a Schedule Trigger node at the beginning of the workflow.
    • Set the Trigger Interval to use Minutes.
    • Set the Minutes Between Triggers to 30.
    • To test your schedule, be sure to activate the workflow.
    • Be sure to connect this node to the Customer Datastore (n8n training) node you began with!

The workflow should look like this:

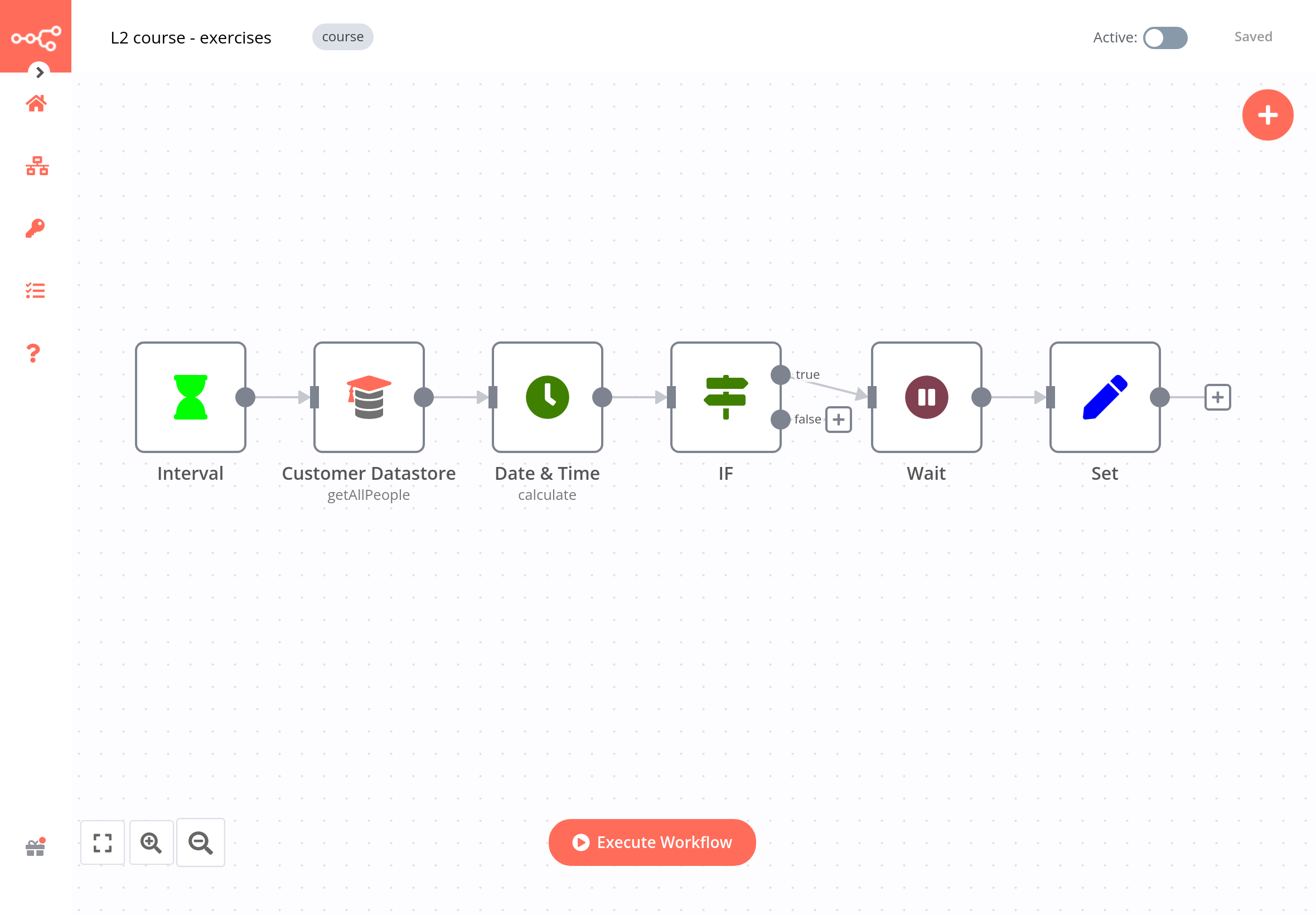

Workflow for transforming dates
Workflow for transforming dates

To check the configuration of each node, you can copy the JSON code of this workflow and either paste it into the Editor UI or save it as a file and import from file into a new workflow. See Export and import workflows for more information.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
{
"name": "Course 2, Ch 2, Date exercise",
"nodes": [
	{
	"parameters": {},
	"id": "6bf64d5c-4b00-43cf-8439-3cbf5e5f203b",
	"name": "When clicking \"Test workflow\"",
	"type": "n8n-nodes-base.manualTrigger",
	"typeVersion": 1,
	"position": [
		620,
		280
	]
	},
	{
	"parameters": {
		"operation": "getAllPeople",
		"returnAll": true
	},
	"id": "a08a8157-99ee-4d50-8fe4-b6d7e16e858e",
	"name": "Customer Datastore (n8n training)",
	"type": "n8n-nodes-base.n8nTrainingCustomerDatastore",
	"typeVersion": 1,
	"position": [
		840,
		360
	]
	},
	{
	"parameters": {
		"operation": "roundDate",
		"date": "={{ $json.created }}",
		"mode": "roundUp",
		"outputFieldName": "new-date",
		"options": {
		"includeInputFields": true
		}
	},
	"id": "f66a4356-2584-44b6-a4e9-1e3b5de53e71",
	"name": "Date & Time",
	"type": "n8n-nodes-base.dateTime",
	"typeVersion": 2,
	"position": [
		1080,
		360
	]
	},
	{
	"parameters": {
		"conditions": {
		"options": {
			"caseSensitive": true,
			"leftValue": "",
			"typeValidation": "strict"
		},
		"conditions": [
			{
			"id": "7c82823a-e603-4166-8866-493f643ba354",
			"leftValue": "={{ $json['new-date'] }}",
			"rightValue": "1960-01-01T00:00:00",
			"operator": {
				"type": "dateTime",
				"operation": "after"
			}
			}
		],
		"combinator": "and"
		},
		"options": {}
	},
	"id": "cea39877-6183-4ea0-9400-e80523636912",
	"name": "If",
	"type": "n8n-nodes-base.if",
	"typeVersion": 2,
	"position": [
		1280,
		360
	]
	},
	{
	"parameters": {
		"amount": 1,
		"unit": "minutes"
	},
	"id": "5aa860b7-c73c-4df0-ad63-215850166f13",
	"name": "Wait",
	"type": "n8n-nodes-base.wait",
	"typeVersion": 1.1,
	"position": [
		1480,
		260
	],
	"webhookId": "be78732e-787d-463e-9210-2c7e8239761e"
	},
	{
	"parameters": {
		"assignments": {
		"assignments": [
			{
			"id": "e058832a-2461-4c6d-b584-043ecc036427",
			"name": "outputValue",
			"value": "={{ $json['new-date'] }}",
			"type": "string"
			}
		]
		},
		"includeOtherFields": true,
		"options": {}
	},
	"id": "be034e9e-3cf1-4264-9d15-b6760ce28f91",
	"name": "Edit Fields",
	"type": "n8n-nodes-base.set",
	"typeVersion": 3.3,
	"position": [
		1700,
		260
	]
	},
	{
	"parameters": {
		"rule": {
		"interval": [
			{
			"field": "minutes",
			"minutesInterval": 30
			}
		]
		}
	},
	"id": "6e8e4308-d0e0-4d0d-bc29-5131b57cf061",
	"name": "Schedule Trigger",
	"type": "n8n-nodes-base.scheduleTrigger",
	"typeVersion": 1.1,
	"position": [
		620,
		480
	]
	}
],
"pinData": {},
"connections": {
	"When clicking \"Test workflow\"": {
	"main": [
		[
		{
			"node": "Customer Datastore (n8n training)",
			"type": "main",
			"index": 0
		}
		]
	]
	},
	"Customer Datastore (n8n training)": {
	"main": [
		[
		{
			"node": "Date & Time",
			"type": "main",
			"index": 0
		}
		]
	]
	},
	"Date & Time": {
	"main": [
		[
		{
			"node": "If",
			"type": "main",
			"index": 0
		}
		]
	]
	},
	"If": {
	"main": [
		[
		{
			"node": "Wait",
			"type": "main",
			"index": 0
		}
		]
	]
	},
	"Wait": {
	"main": [
		[
		{
			"node": "Edit Fields",
			"type": "main",
			"index": 0
		}
		]
	]
	},
	"Schedule Trigger": {
	"main": [
		[
		{
			"node": "Customer Datastore (n8n training)",
			"type": "main",
			"index": 0
		}
		]
	]
	}
}
}

Binary data#

Up to now, you have mainly worked with text data. But what if you want to process data that's not text, like images or PDF files? These types of files are represented in the binary numeral system, so they're considered binary data. In this form, binary data doesn't offer you useful information, so you'll need to convert it into a readable form.

In n8n, you can process binary data with the following nodes:

Reading and writing files is only available on self-hosted n8n

Reading and writing files to disk isn't available on n8n Cloud. You'll read and write to the machine where you installed n8n. If you run n8n in Docker, your command runs in the n8n container and not the Docker host. The Read/Write Files From Disk node looks for files relative to the n8n install path. n8n recommends using absolute file paths to prevent any errors.

To read or write a binary file, you need to write the path (location) of the file in the node's File(s) Selector parameter (for the Read operation) or in the node's File Path and Name parameter (for the Write operation).

Naming the right path

The file path looks slightly different depending on how you are running n8n:

  • npm: ~/my_file.json
  • n8n cloud / Docker: /tmp/my_file.json

Binary Exercise 1#

For our first binary exercise, let's convert a PDF file to JSON:

  1. Make an HTTP request to get this PDF file: https://media.kaspersky.com/pdf/Kaspersky_Lab_Whitepaper_Anti_blocker.pdf.
  2. Use the Extract From File node to convert the file from binary to JSON.
Show me the solution

In the HTTP Request node, you should see the PDF file, like this:

HTTP Request node to get PDF
HTTP Request node to get PDF

When you convert the PDF from binary to JSON using the Extract From File node, the result should look like this:

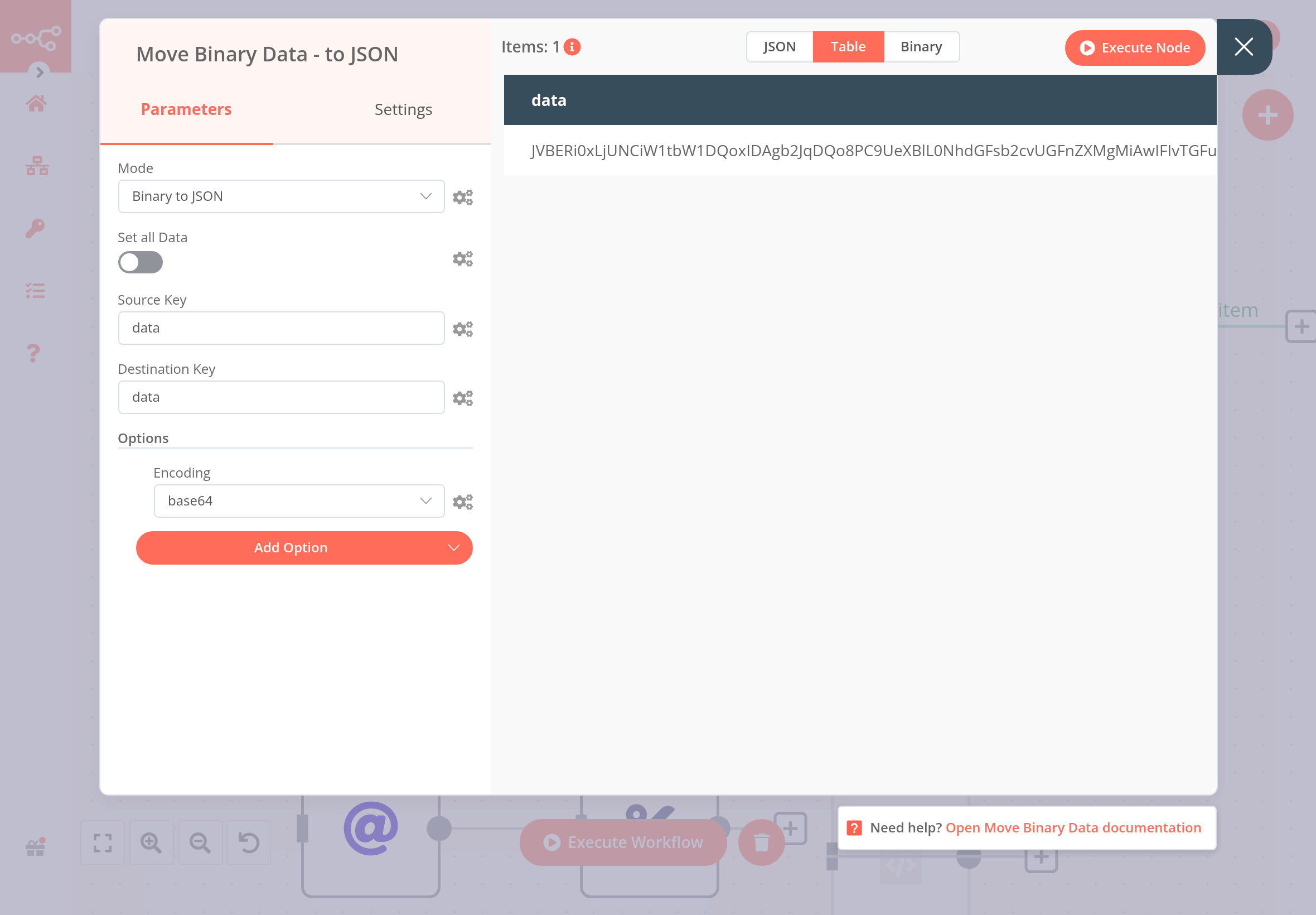

Extract From File node
Extract From File node

To check the configuration of the nodes, you can copy the JSON workflow code below and paste it into your Editor UI:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
{
	"name": "Binary to JSON",
	"nodes": [
		{
		"parameters": {},
		"id": "78639a25-b69a-4b9c-84e0-69e045bed1a3",
		"name": "When clicking \"Execute Workflow\"",
		"type": "n8n-nodes-base.manualTrigger",
		"typeVersion": 1,
		"position": [
			480,
			520
		]
		},
		{
		"parameters": {
			"url": "https://media.kaspersky.com/pdf/Kaspersky_Lab_Whitepaper_Anti_blocker.pdf",
			"options": {}
		},
		"id": "a11310df-1287-4e9a-b993-baa6bd4265a6",
		"name": "HTTP Request",
		"type": "n8n-nodes-base.httpRequest",
		"typeVersion": 4.1,
		"position": [
			700,
			520
		]
		},
		{
		"parameters": {
			"operation": "pdf",
			"options": {}
		},
		"id": "88697b6b-fb02-4c3d-a715-750d60413e9f",
		"name": "Extract From File",
		"type": "n8n-nodes-base.extractFromFile",
		"typeVersion": 1,
		"position": [
			920,
			520
		]
		}
	],
	"pinData": {},
	"connections": {
		"When clicking \"Execute Workflow\"": {
		"main": [
			[
			{
				"node": "HTTP Request",
				"type": "main",
				"index": 0
			}
			]
		]
		},
		"HTTP Request": {
		"main": [
			[
			{
				"node": "Extract From File",
				"type": "main",
				"index": 0
			}
			]
		]
		}
	}
}

Binary Exercise 2#

For our second binary exercise, let's convert some JSON data to binary:

  1. Make an HTTP request to the Poetry DB API https://poetrydb.org/random/1.
  2. Convert the returned data from JSON to binary using the Convert to File node.
  3. Write the new binary file data to the machine where n8n is running using the Read/Write Files From Disk node.
  4. To check that it worked out, use the Read/Write Files From Disk node to read the generated binary file.
Show me the solution

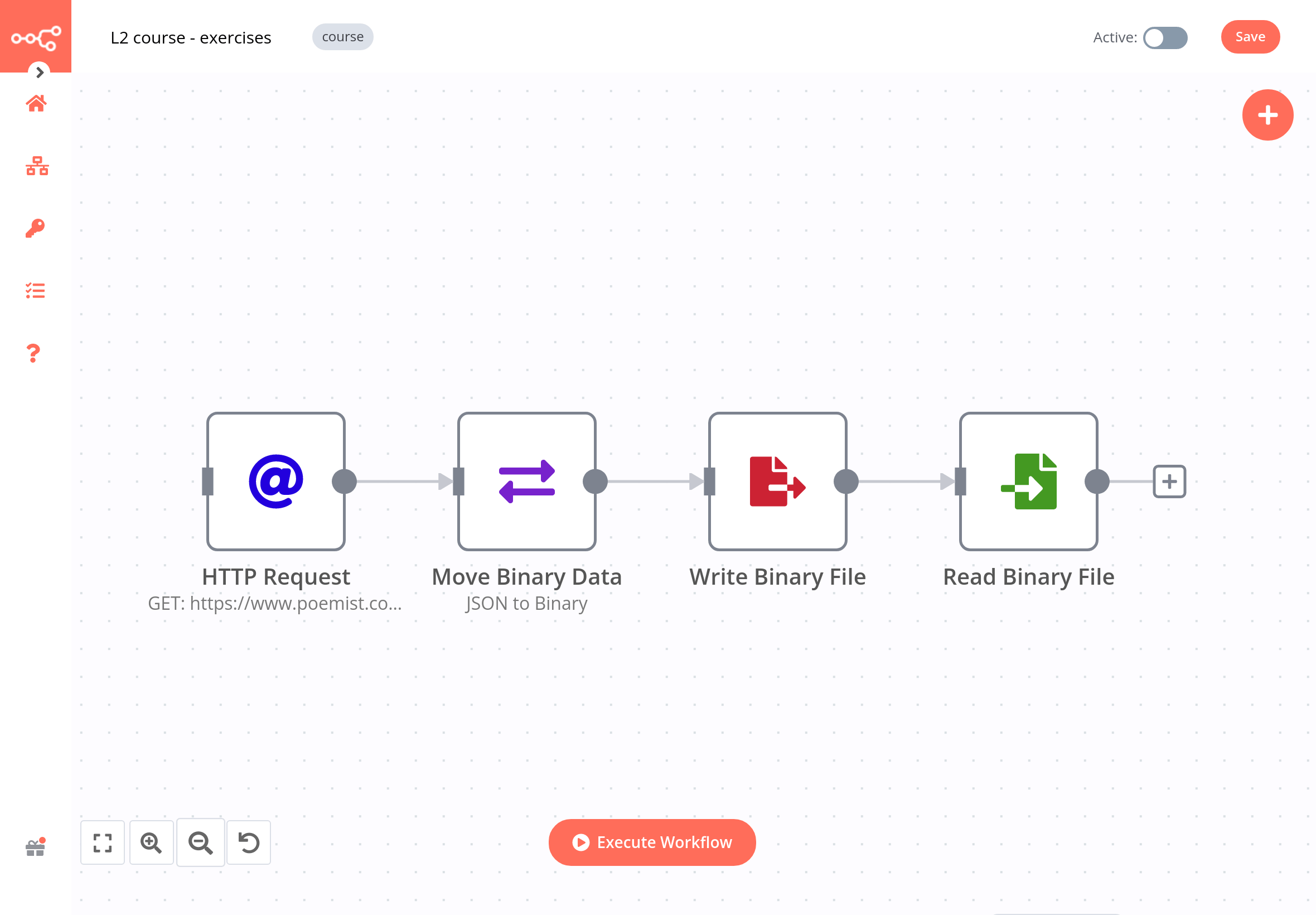

The workflow for this exercise looks like this:

Workflow for moving JSON to binary data
Workflow for moving JSON to binary data

To check the configuration of the nodes, you can copy the JSON workflow code below and paste it into your Editor UI:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
{
	"name": "JSON to file and Read-Write",
	"nodes": [
		{
		"parameters": {},
		"id": "78639a25-b69a-4b9c-84e0-69e045bed1a3",
		"name": "When clicking \"Execute Workflow\"",
		"type": "n8n-nodes-base.manualTrigger",
		"typeVersion": 1,
		"position": [
			480,
			520
		]
		},
		{
		"parameters": {
			"url": "https://poetrydb.org/random/1",
			"options": {}
		},
		"id": "a11310df-1287-4e9a-b993-baa6bd4265a6",
		"name": "HTTP Request",
		"type": "n8n-nodes-base.httpRequest",
		"typeVersion": 4.1,
		"position": [
			680,
			520
		]
		},
		{
		"parameters": {
			"operation": "toJson",
			"options": {}
		},
		"id": "06be18f6-f193-48e2-a8d9-35f4779d8324",
		"name": "Convert to File",
		"type": "n8n-nodes-base.convertToFile",
		"typeVersion": 1,
		"position": [
			880,
			520
		]
		},
		{
		"parameters": {
			"operation": "write",
			"fileName": "/tmp/poetrydb.json",
			"options": {}
		},
		"id": "f2048e5d-fa8f-4708-b15a-d07de359f2e5",
		"name": "Read/Write Files from Disk",
		"type": "n8n-nodes-base.readWriteFile",
		"typeVersion": 1,
		"position": [
			1080,
			520
		]
		},
		{
		"parameters": {
			"fileSelector": "={{ $json.fileName }}",
			"options": {}
		},
		"id": "d630906c-09d4-49f4-ba14-416c0f4de1c8",
		"name": "Read/Write Files from Disk1",
		"type": "n8n-nodes-base.readWriteFile",
		"typeVersion": 1,
		"position": [
			1280,
			520
		]
		}
	],
	"pinData": {},
	"connections": {
		"When clicking \"Execute Workflow\"": {
		"main": [
			[
			{
				"node": "HTTP Request",
				"type": "main",
				"index": 0
			}
			]
		]
		},
		"HTTP Request": {
		"main": [
			[
			{
				"node": "Convert to File",
				"type": "main",
				"index": 0
			}
			]
		]
		},
		"Convert to File": {
		"main": [
			[
			{
				"node": "Read/Write Files from Disk",
				"type": "main",
				"index": 0
			}
			]
		]
		},
		"Read/Write Files from Disk": {
		"main": [
			[
			{
				"node": "Read/Write Files from Disk1",
				"type": "main",
				"index": 0
			}
			]
		]
		}
	}
}
