Workflow 2: Generating reports

In this workflow, you will merge data from different sources, transform binary data, generate files, and send notifications about them. The final workflow should look like this:

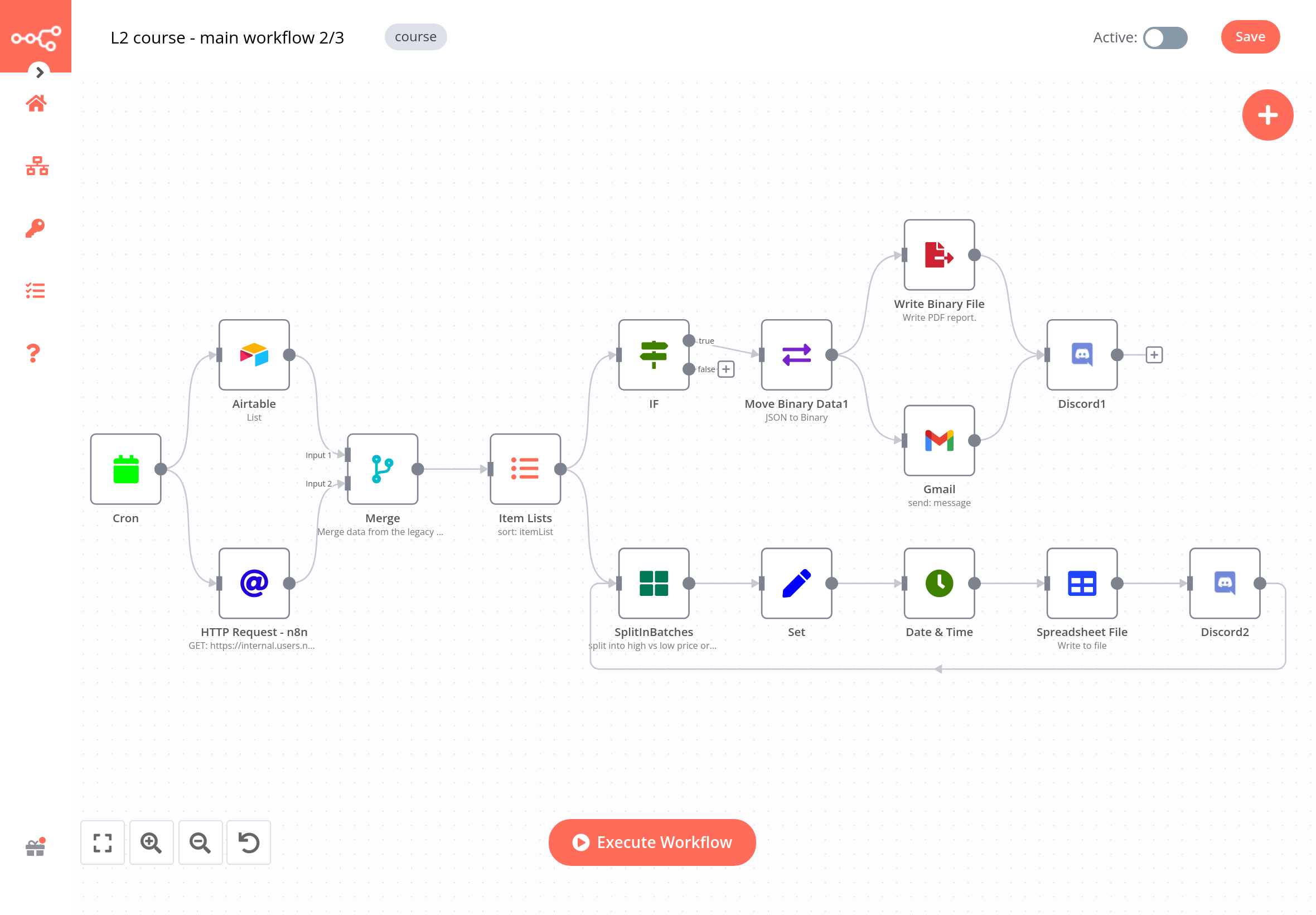

Workflow 2 for aggregating data and generating files

To make things easier, let's split the workflow into three parts.

Part 1: Getting data from different sources

The first part of the workflow consists of five nodes:

Workflow 1 – Getting data from different sources

1. Use the HTTP Request node to get data from the API endpoint that stores company data. Configure the following node parameters:

   • Authentication: Header Auth
   • Credentials for Header Auth: The Header Auth name and Header Auth value you received in the email when you signed up for this course.
   • URL: The Dataset URL you received in the email when you signed up for this course.
   • Options > Add Option > Split Into Items: toggle to true.
   • Headers > Add Header:
     • Name: unique_id
     • Value: The unique ID you received in the email when you signed up for this course.

2. Use the Airtable node to list data from the customers table (where you updated the fields region and subregion).

3. Use the Merge node to merge data from the Airtable and HTTP Request node, based on the common key customer ID.
4. Use the Sort node to sort data by orderPrice in descending order.

Quiz questions

• What's the name of the employee assigned to customer 1?
• What's the order status of customer 2?
• What's the highest order price?

Part 2: Generating file for regional sales

The second part of the workflow consists of five nodes:

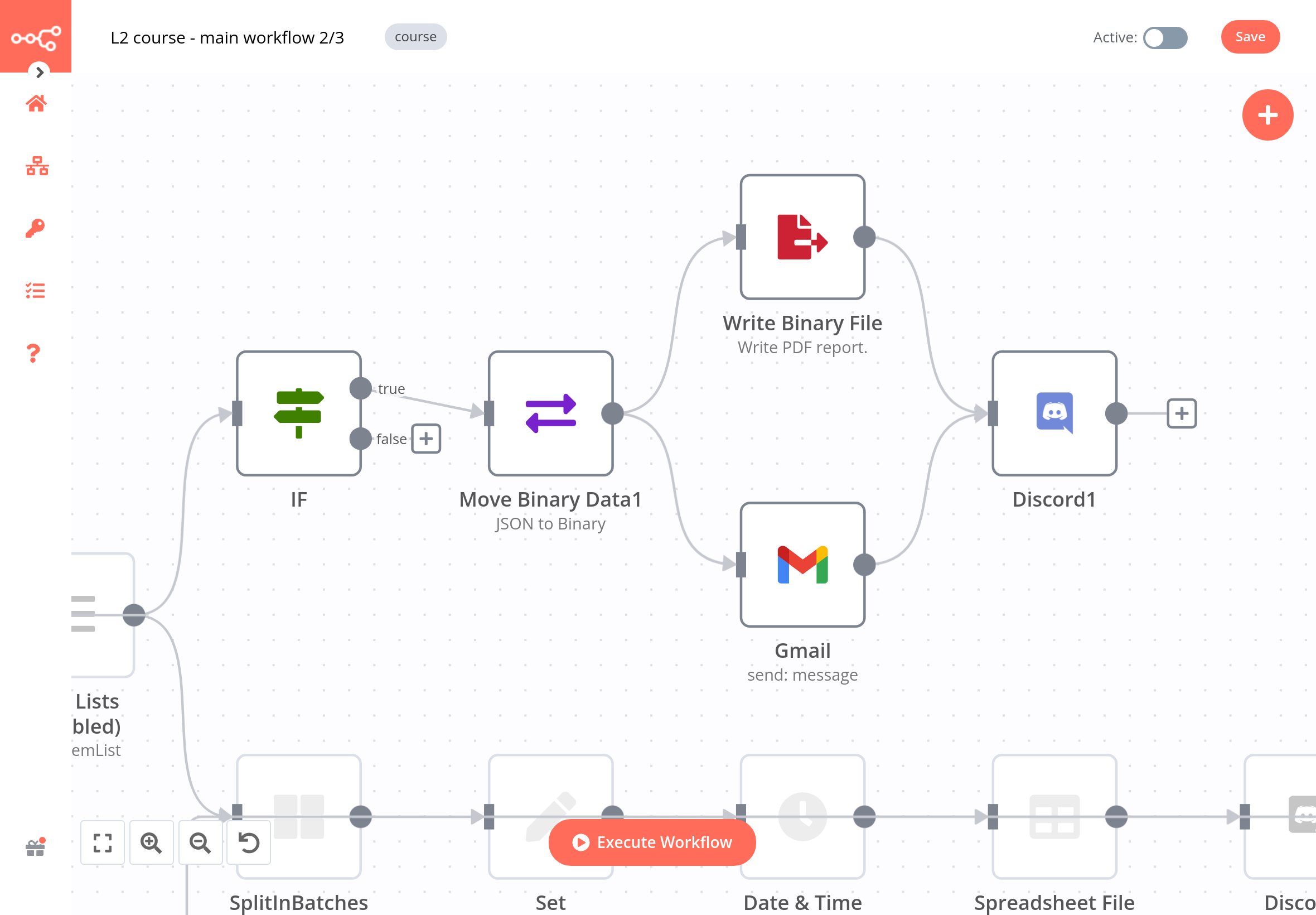

Workflow 2 – Generating file for regional sales

1. Use the IF node to filter order from the region Americas.
2. Use the Convert to File to transform the incoming data from JSON to binary format. Convert each item to a file.
3. Use the Gmail node (or another email node) to send the files using email to an address you have access to. Note that you need to add an attachment with the data property.
4. Use the Discord node to send a message in the n8n Discord channel #course-level-two. In the node, configure the following parameters:
   • Webhook URL: The webhook URL you received in the email when you signed up for this course.
   • Text: "I sent the file using email with the label ID {label ID}. My ID: " followed by your ID.
     Note that you need to replace the text in curly braces {} with expressions that reference the data from the nodes.

Quiz questions

• How many orders are assigned to the region Americas?
• What's the total price of the orders in the region Americas?
• How many items are returned by the Write Binary File node?

Part 3: Generating files for total sales

The third part of the workflow consists of seven nodes:

Workflow 3 – Generating files for total sales

1. Use the Loop Over Items node to split data from the Item Lists node into batches of 5.
2. Use the Set node to set four values, referenced with expressions from the previous node: customerEmail, customerRegion, customerSince, and orderPrice.
3. Use the Date & Time node to change the date format of the field customerSince to the format MM/DD/YYYY. Set the 'Include Input Fields' option to keep all the data together.
4. Use the Convert to File node to create a CSV spreadsheet with the file name set as the expression: {{$runIndex > 0 ? 'file_low_orders':'file_high_orders'}}.
5. Use the Discord node to send a message in the n8n Discord channel #course-level-two. In the node, configure the following parameters:
   • Webhook URL: The webhook URL you received in the email when you signed up for this course.
   • Text: "I created the spreadsheet {file name}. My ID:" followed by your ID.
     The {file name} should be an expression that references data from the Spreadsheet File node.


Quiz questions

• What's the lowest order price in the first batch of items?
• What's the formatted date of customer 7?
• How many items are returned by the Convert to File node?

Show me the solution

To check the configuration of the nodes, you can copy-paste the JSON code of the workflow:

{
"meta": {
    "templateCredsSetupCompleted": true,
    "instanceId": "cb484ba7b742928a2048bf8829668bed5b5ad9787579adea888f05980292a4a7"
},
"nodes": [
    {
    "parameters": {
        "sendTo": "bart@n8n.io",
        "subject": "Your TPS Reports",
        "emailType": "text",
        "message": "Please find your TPS report attached.",
        "options": {
        "attachmentsUi": {
            "attachmentsBinary": [
            {}
            ]
        }
        }
    },
    "id": "d889eb42-8b34-4718-b961-38c8e7839ea6",
    "name": "Gmail",
    "type": "n8n-nodes-base.gmail",
    "typeVersion": 2.1,
    "position": [
        2100,
        500
    ],
    "credentials": {
        "gmailOAuth2": {
        "id": "HFesCcFcn1NW81yu",
        "name": "Gmail account 7"
        }
    }
    },
    {
    "parameters": {},
    "id": "c0236456-40be-4f8f-a730-e56cb62b7b5c",
    "name": "When clicking \"Test workflow\"",
    "type": "n8n-nodes-base.manualTrigger",
    "typeVersion": 1,
    "position": [
        780,
        600
    ]
    },
    {
    "parameters": {
        "url": "https://internal.users.n8n.cloud/webhook/level2-erp",
        "authentication": "genericCredentialType",
        "genericAuthType": "httpHeaderAuth",
        "sendHeaders": true,
        "headerParameters": {
        "parameters": [
            {
            "name": "unique_id",
            "value": "recFIcD6UlSyxaVMQ"
            }
        ]
        },
        "options": {}
    },
    "id": "cc106fa0-6630-4c84-aea4-a4c7a3c149e9",
    "name": "HTTP Request",
    "type": "n8n-nodes-base.httpRequest",
    "typeVersion": 4.1,
    "position": [
        1000,
        500
    ],
    "credentials": {
        "httpHeaderAuth": {
        "id": "qeHdJdqqqaTC69cm",
        "name": "Course L2 Credentials"
        }
    }
    },
    {
    "parameters": {
        "operation": "search",
        "base": {
        "__rl": true,
        "value": "apprtKkVasbQDbFa1",
        "mode": "list",
        "cachedResultName": "All your base",
        "cachedResultUrl": "https://airtable.com/apprtKkVasbQDbFa1"
        },
        "table": {
        "__rl": true,
        "value": "tblInZ7jeNdlUOvxZ",
        "mode": "list",
        "cachedResultName": "Course L2, Workflow 1",
        "cachedResultUrl": "https://airtable.com/apprtKkVasbQDbFa1/tblInZ7jeNdlUOvxZ"
        },
        "options": {}
    },
    "id": "e5ae1927-b531-401c-9cb2-ecf1f2836ba6",
    "name": "Airtable",
    "type": "n8n-nodes-base.airtable",
    "typeVersion": 2,
    "position": [
        1000,
        700
    ],
    "credentials": {
        "airtableTokenApi": {
        "id": "MIplo6lY3AEsdf7L",
        "name": "Airtable Personal Access Token account 4"
        }
    }
    },
    {
    "parameters": {
        "mode": "combine",
        "mergeByFields": {
        "values": [
            {
            "field1": "customerID",
            "field2": "customerID"
            }
        ]
        },
        "options": {}
    },
    "id": "1cddc984-7fca-45e0-83b8-0c502cb4c78c",
    "name": "Merge",
    "type": "n8n-nodes-base.merge",
    "typeVersion": 2.1,
    "position": [
        1220,
        600
    ]
    },
    {
    "parameters": {
        "sortFieldsUi": {
        "sortField": [
            {
            "fieldName": "orderPrice",
            "order": "descending"
            }
        ]
        },
        "options": {}
    },
    "id": "2f55af2e-f69b-4f61-a9e5-c7eefaad93ba",
    "name": "Sort",
    "type": "n8n-nodes-base.sort",
    "typeVersion": 1,
    "position": [
        1440,
        600
    ]
    },
    {
    "parameters": {
        "conditions": {
        "options": {
            "caseSensitive": true,
            "leftValue": "",
            "typeValidation": "strict"
        },
        "conditions": [
            {
            "id": "d3afe65c-7c80-4caa-9d1c-33c62fbc2197",
            "leftValue": "={{ $json.region }}",
            "rightValue": "Americas",
            "operator": {
                "type": "string",
                "operation": "equals",
                "name": "filter.operator.equals"
            }
            }
        ],
        "combinator": "and"
        },
        "options": {}
    },
    "id": "2ed874a9-5bcf-4cc9-9b52-ea503a562892",
    "name": "If",
    "type": "n8n-nodes-base.if",
    "typeVersion": 2,
    "position": [
        1660,
        500
    ]
    },
    {
    "parameters": {
        "operation": "toJson",
        "mode": "each",
        "options": {
        "fileName": "=report_orderID_{{ $('If').item.json.orderID }}.json"
        }
    },
    "id": "d93b4429-2200-4a84-8505-16266fedfccd",
    "name": "Convert to File",
    "type": "n8n-nodes-base.convertToFile",
    "typeVersion": 1.1,
    "position": [
        1880,
        500
    ]
    },
    {
    "parameters": {
        "authentication": "webhook",
        "content": "I sent the file using email with the label ID  and wrote the binary file {file name}. My ID: 123",
        "options": {}
    },
    "id": "26f43f2c-1422-40de-9f40-dd2d80926b1c",
    "name": "Discord",
    "type": "n8n-nodes-base.discord",
    "typeVersion": 2,
    "position": [
        2320,
        500
    ],
    "credentials": {
        "discordWebhookApi": {
        "id": "WEBrtPdoLrhlDYKr",
        "name": "L2 Course Discord Webhook account"
        }
    }
    },
    {
    "parameters": {
        "batchSize": 5,
        "options": {}
    },
    "id": "0fa1fbf6-fe77-4044-a445-c49a1db37dec",
    "name": "Loop Over Items",
    "type": "n8n-nodes-base.splitInBatches",
    "typeVersion": 3,
    "position": [
        1660,
        700
    ]
    },
    {
    "parameters": {
        "assignments": {
        "assignments": [
            {
            "id": "ce839b80-c50d-48f5-9a24-bb2df6fdd2ff",
            "name": "customerEmail",
            "value": "={{ $json.customerEmail }}",
            "type": "string"
            },
            {
            "id": "0c613366-3808-45a2-89cc-b34c7b9f3fb7",
            "name": "region",
            "value": "={{ $json.region }}",
            "type": "string"
            },
            {
            "id": "0f19a88c-deb0-4119-8965-06ed62a840b2",
            "name": "customerSince",
            "value": "={{ $json.customerSince }}",
            "type": "string"
            },
            {
            "id": "a7e890d6-86af-4839-b5df-d2a4efe923f7",
            "name": "orderPrice",
            "value": "={{ $json.orderPrice }}",
            "type": "number"
            }
        ]
        },
        "options": {}
    },
    "id": "09b8584c-4ead-4007-a6cd-edaa4669a757",
    "name": "Edit Fields",
    "type": "n8n-nodes-base.set",
    "typeVersion": 3.3,
    "position": [
        1880,
        700
    ]
    },
    {
    "parameters": {
        "operation": "formatDate",
        "date": "={{ $json.customerSince }}",
        "options": {
        "includeInputFields": true
        }
    },
    "id": "c96fae90-e080-48dd-9bff-3e4506aafb86",
    "name": "Date & Time",
    "type": "n8n-nodes-base.dateTime",
    "typeVersion": 2,
    "position": [
        2100,
        700
    ]
    },
    {
    "parameters": {
        "options": {
        "fileName": "={{$runIndex > 0 ? 'file_low_orders':'file_high_orders'}}"
        }
    },
    "id": "43dc8634-2f16-442b-a754-89f47c51c591",
    "name": "Convert to File1",
    "type": "n8n-nodes-base.convertToFile",
    "typeVersion": 1.1,
    "position": [
        2320,
        700
    ]
    },
    {
    "parameters": {
        "authentication": "webhook",
        "content": "I created the spreadsheet {file name}. My ID: 123",
        "options": {}
    },
    "id": "05da1c22-d1f6-4ea6-9102-f74f9ae2e9d3",
    "name": "Discord1",
    "type": "n8n-nodes-base.discord",
    "typeVersion": 2,
    "position": [
        2540,
        700
    ],
    "credentials": {
        "discordWebhookApi": {
        "id": "WEBrtPdoLrhlDYKr",
        "name": "L2 Course Discord Webhook account"
        }
    }
    }
],
"connections": {
    "Gmail": {
    "main": [
        [
        {
            "node": "Discord",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "When clicking \"Test workflow\"": {
    "main": [
        [
        {
            "node": "HTTP Request",
            "type": "main",
            "index": 0
        },
        {
            "node": "Airtable",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "HTTP Request": {
    "main": [
        [
        {
            "node": "Merge",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "Airtable": {
    "main": [
        [
        {
            "node": "Merge",
            "type": "main",
            "index": 1
        }
        ]
    ]
    },
    "Merge": {
    "main": [
        [
        {
            "node": "Sort",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "Sort": {
    "main": [
        [
        {
            "node": "Loop Over Items",
            "type": "main",
            "index": 0
        },
        {
            "node": "If",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "If": {
    "main": [
        [
        {
            "node": "Convert to File",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "Convert to File": {
    "main": [
        [
        {
            "node": "Gmail",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "Loop Over Items": {
    "main": [
        null,
        [
        {
            "node": "Edit Fields",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "Edit Fields": {
    "main": [
        [
        {
            "node": "Date & Time",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "Date & Time": {
    "main": [
        [
        {
            "node": "Convert to File1",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "Convert to File1": {
    "main": [
        [
        {
            "node": "Discord1",
            "type": "main",
            "index": 0
        }
        ]
    ]
    },
    "Discord1": {
    "main": [
        [
        {
            "node": "Loop Over Items",
            "type": "main",
            "index": 0
        }
        ]
    ]
    }
},
"pinData": {}
}
