Accessing n8n MCP server#

Connect supported MCP clients to your n8n workflows through n8n's built-in MCP server.

The server allows clients such as Lovable or Claude Desktop to connect securely to an n8n instance. Once connected, these clients can:

Search within workflows marked as available in MCP
Retrieve metadata and trigger information for workflows
Trigger and run exposed workflows
Create and edit workflows

Difference between instance-level MCP access and MCP Server Trigger node#

Instance-level MCP access lets you create one connection per n8n instance, use centralized authentication, and choose which workflows to enable for access. Enabled workflows are easy to find and run without extra setup for each workflow.

In comparison, you configure an MCP Server Trigger node inside a single workflow. This node exposes tools only from that workflow, a useful approach when you want to craft a specific MCP server behavior within one workflow.

Key considerations when using instance-level MCP access#

MCP supports two types of workflow interactions: running existing workflows with the workflow execution tools, and building or editing workflows (v2.13 onward).
It doesn't provide blanket exposure to all workflows in your instance. You must enable MCP at the instance level and then enable each workflow individually.
It's not scoped to each MCP client. Any connected client sees all workflows you’ve enabled for MCP access.

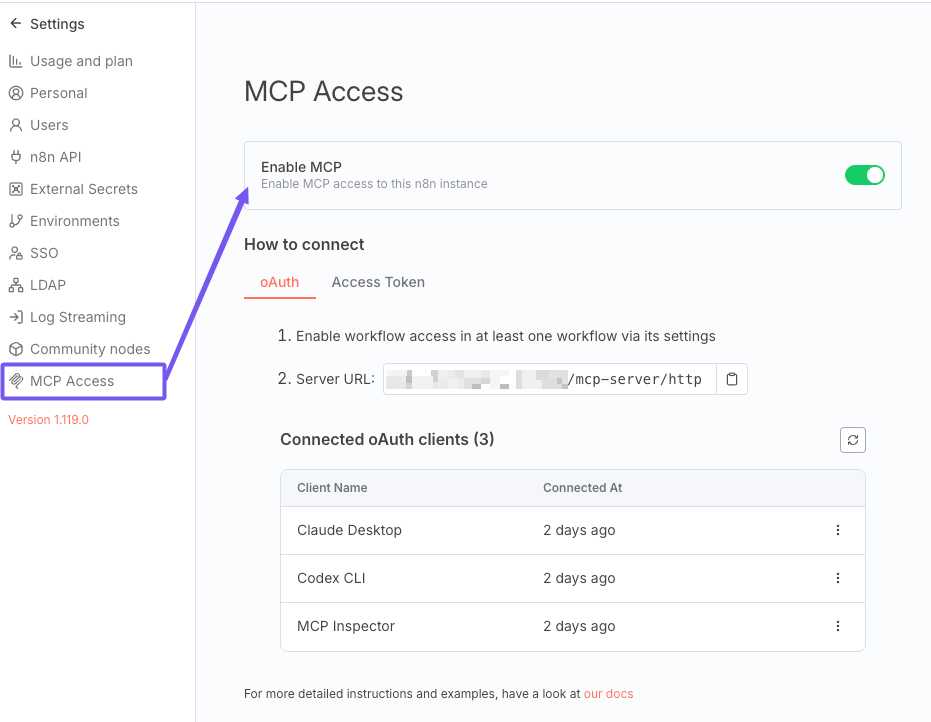

Enabling MCP access#

For Cloud and self-hosted instances#

Navigate to Settings > Instance-level MCP
Toggle Enable MCP access (requires instance owner or admin permissions).

Once enabled, you'll see:

List of workflows exposed to MCP clients
List of connected OAuth clients
Main MCP toggle to enable/disable instance-level access
Connection details button that shows detailed instructions for connecting MCP clients

To disable: Toggle the main MCP toggle off.

For self-hosted: Complete disablement#

To remove the feature entirely, set the environment variable:

N8N_DISABLED_MODULES=mcp

This action removes MCP endpoints and hides all related UI elements.

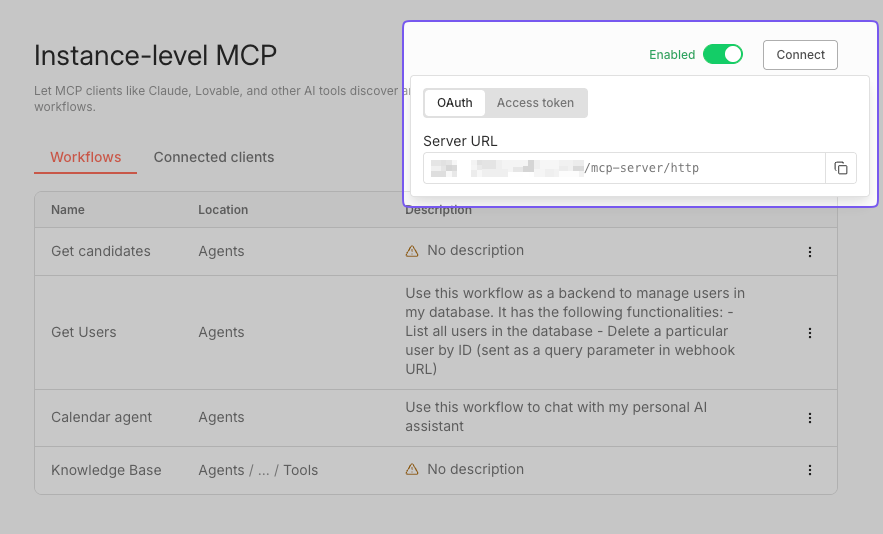

Setting up MCP authentication#

The Connection details popup menu provides two authentication options for MCP clients:

OAuth2
Access Token

Using OAuth2#

Copy your instance server URL from the OAuth tab and use it to configure your MCP client. After connecting, the client will redirect you to n8n to authorize access.

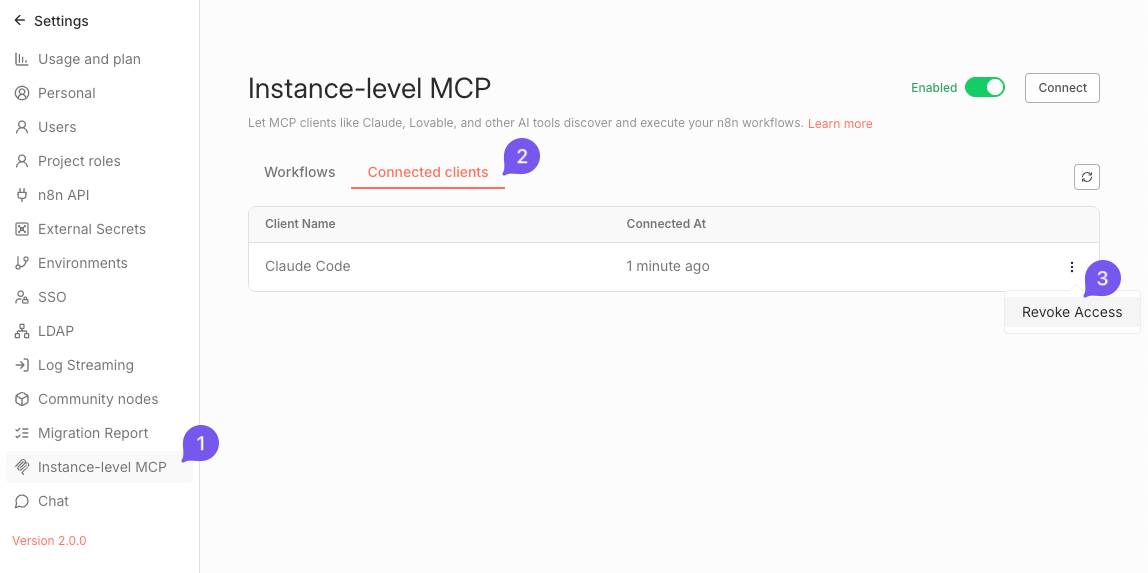

Revoking client access#

To revoke access for connected MCP clients:

Navigate to Settings > Instance-level MCP.
Switch to the Connected clients tab. You should see a table of connected OAuth clients.
Use the action menu in each client's row to revoke access for specific clients.

Using Access Token#

Use your instance server URL and your personal MCP Access Token from the Access Token tab on the Connection details menu.

When you first visit the MCP Access page, n8n automatically generates a personal MCP Access Token tied to your user account.

Info

Copy your token right away. On future visits, you'll only see a redacted value and the copy button will be disabled.

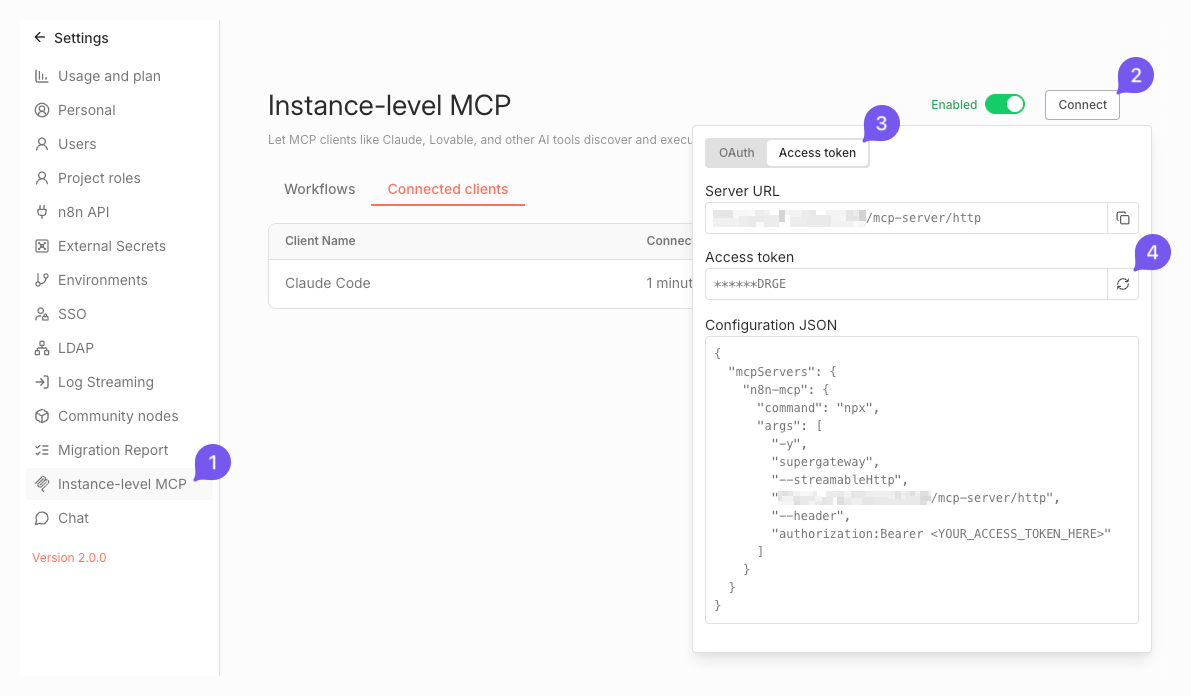

Rotating your token#

If you lose your token or need to rotate it:

Navigate to Settings > Instance-level MCP.
Open the Connection details menu by clicking the button in the top-right corner.
Switch to the Access Token tab.
Generate a new token using the button next to the redacted token value.

n8n revokes the previous token when you generate a new one.
Update all connected MCP clients with the new value.

Exposing workflows to MCP clients#

By default, no workflows are visible to MCP clients. You must explicitly enable MCP access for each workflow you want to expose.

Enabling access#

Option 1: From MCP settings page (available from n8n v2.2.0)#

Click the Enable workflows button (in the workflows table header or in the table's empty state)
Search for the desired workflow (by name or description) and select it from the list
Click Enable button to confirm

Option 2: From the workflow editor#

Open the workflow.
Click the main workflow menu (...) in the top-right corner.
Select Settings.
Toggle Available in MCP.

Option 3: From the workflows list#

Go to Workflows.
Open the menu on a workflow card.
Select Enable MCP access.

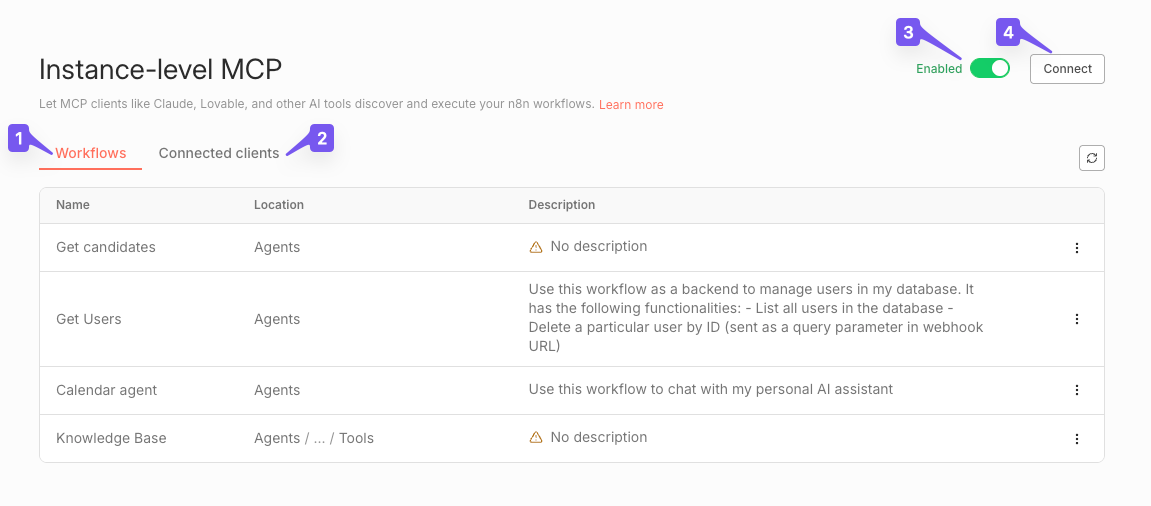

Managing access#

The Instance-level MCP settings page shows all workflows available to MCP clients. From this list you can:

Open a workflow, its home project or parent folder directly
Revoke access using the action menu (or use Disable MCP access from the workflow card menu)
Update workflow description using the action menu (or use the menu in the workflow editor)
Enable access for more workflows using the Enable workflows button (available from n8n v2.2.0)

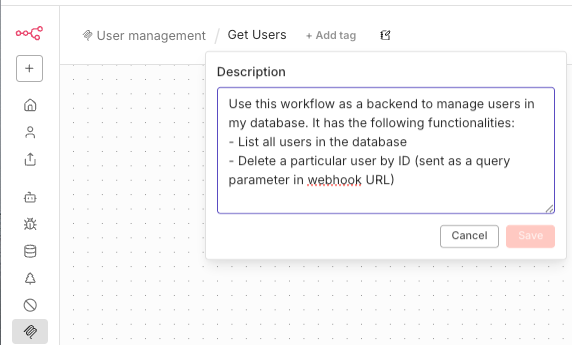

Workflow descriptions#

To help MCP clients identify workflows, you can add free-text descriptions as follows:

Option 1: From the Instance-level MCP page
1. Navigate to Settings > Instance-level MCP.
2. Make sure you are on the Workflows tab.
3. Use the action menu in the desired workflow's row and select the Edit description action.
4. Alternatively, click the description text directly to open the edit dialog.

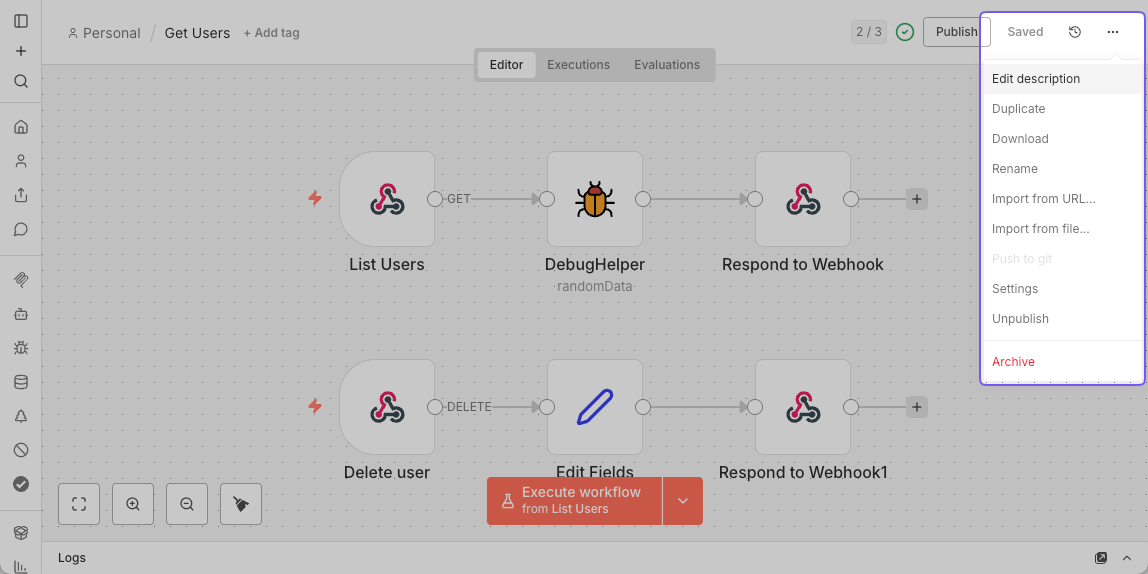

Option 2: From the workflow editor
1. Open the workflow.
2. Click the main workflow menu (...) in the top-right corner.
3. Select Edit description.

Executing workflows through MCP clients#

MCP clients can execute workflows that you identify as available in MCP.

When a workflow is triggered or created, it runs as usual in n8n, and you can monitor its execution in the Executions list. Once the execution is complete, the MCP client will retrieve the results.

Providing input data#

MCP clients are typically able to assess what inputs are expected by a workflow. If you have a webhook trigger and If you see a client struggling to determine the right inputs, we recommend you provide this information in the workflow description.

Workflow timeouts#

n8n enforces a 5-minute timeout for workflow executions triggered by MCP clients. If a workflow doesn't finish in time, n8n stops the execution and sends an error to the MCP client, ignoring any timeout you set in the workflow settings for MCP-triggered executions.

Limitations#

If there are multiple supported triggers in a workflow, MCP clients may only be able to use one (first one) of them to trigger the workflow when using workflow execution tools (not applicable to AI Workflow builder workflows).
Executing workflows with multi-step forms or any kind of human-in-the-loop interactions isn't supported.
Binary input data isn't supported. MCP clients can only provide text-based inputs for your workflows.

Tools#

Tip

Consider using coding agents (such as Claude Code or Google ADK agents) instead of chat clients as your MCP clients. Coding agents are optimized for generating and validating TypeScript code, making them ideal for building workflows programmatically.

The n8n MCP Server exposes the following tools so that you can create and update workflows using an MCP Client.

SDK and node reference#

get_sdk_reference: Retrieve n8n SDK documentation to understand the TypeScript syntax used for building workflows as code. Supports fetching either the full documentation or specific sections. Valid sections: patterns, expressions, functions, rules, import, guidelines, design, or all (v2.13 onward).
search_nodes: Search for n8n nodes by service name, trigger type, or utility function. Returns node IDs, discriminators (resource/operation/mode parameters), and related nodes needed for the get_node_types tool (v2.13 onward).
get_node_types: Retrieve TypeScript type definitions for n8n nodes. Returns exact parameter names and structures needed for proper node configuration (v2.13 onward).
get_suggested_nodes: Get curated node recommendations for workflow technique categories. Returns recommended nodes with pattern hints and configuration guidance (v2.13 onward).

Workflow creation and validation#

validate_workflow: Validate TypeScript workflow code for syntax and structural errors. Returns either a success confirmation or a list of errors that need fixing (v2.13 onward).
create_workflow_from_code: Create a new workflow in n8n from validated TypeScript workflow code. The tool parses the code into workflow JSON and saves it to your n8n instance. Newly created workflows automatically have descriptions generated from the code and MCP access enabled. Optionally accepts projectId and folderId parameters to create the workflow inside a project or folder. (v2.14 onward)
update_workflow: Update an existing workflow in n8n from validated TypeScript workflow code. Parses the code and saves changes to your n8n instance (v2.13 onward).
delete_workflow: Archive a workflow by ID.
publish_workflow: Publish a workflow by ID.
unpublish_workflow: Unpublish a workflow by ID.

Workflow introspection#

get_execution: Retrieve workflow execution history and results. Supports filtering parameters to avoid context overflow. (v2.14 onward)
- includeData (boolean): Include full execution result data. Defaults to false (metadata only).
- nodeNames (array): When includeData is true, return data only for the specific node names.
- truncateData (boolean): When includeData is true, limit the number of data items returned per node.

Testing workflows#

prepare_test_pin_data: Look at a workflow and return JSON schemas for any nodes that need simulated data (triggers, credentialed nodes, HTTP requests). Use these schemas to generate realistic test data before running test_workflow. (v2.15 onward)
test_workflow: Run a workflow using generated pin data to simulate external services, while still actually executing logic nodes (Set, If, Code). Return the execution status. (v2.15 onward)

Projects and folders#

search_projects: Search for projects accessible to the current user. (v2.14 onward)
search_folders: Search for folders within a project. (v2.14 onward)

Resources#

For MCP clients that support resources:

workflow-sdk-reference: Access n8n SDK documentation as an MCP resource, providing comprehensive reference material for building workflows as code.

Examples#

Connecting Lovable to n8n MCP server#

Configure MCP Server in Lovable (OAuth).
- Navigate to your workspace Settings > Integrations.
- In the MCP Servers section, find n8n and click Connect.
- Enter your n8n server URL (shown on the MCP Access page).
- Save the connection. If successful, n8n redirects you to authorize Lovable.
Verify connectivity.
- Once connected, Lovable can query for workflows with MCP access enabled.
- Example: Asking Lovable to build a workflow UI that lists users and allows deleting them.

Connecting Claude Desktop to n8n MCP server#

Using OAuth2#

Navigate to Settings > Connectors in Claude Desktop.
Click on Add custom connector.
Enter the following details:
- Name: n8n MCP
- Remote MCP Server URL: Your n8n base URL (shown on the Instance-level MCP page)
Save the connector.
When prompted, authorize Claude Desktop to access your n8n instance.

Using Access Token#

Info

This requires the latest version of Node.js.

Add the following entry to your claude_desktop_config.json file:

"mcpServers": {
  "n8n-local": {
    "type": "http",
    "url": "https://<your-n8n-domain>/mcp-server/http",
    "headers": {
      "Authorization": "Bearer <YOUR_N8N_MCP_TOKEN>"
    }
  }
}

Here, replace:

<your-n8n-domain>: Your n8n base URL (shown on the Instance-level MCP page)
<YOUR_N8N_MCP_TOKEN>: Your generated token

Connecting Claude Code to n8n MCP server#

Use the following CLI command:

claude mcp add --transport http n8n-mcp https://<your-n8n-domain>/mcp-server/http \
  --header "Authorization: Bearer <YOUR_N8N_MCP_TOKEN>"

Alternatively, add the following entry to your claude.json file:

{
    "mcpServers": {
        "n8n-local": {
            "type": "http",
            "url": "https://<your-n8n-domain>/mcp-server/http",
            "headers": {
                "Authorization": "Bearer <YOUR_N8N_MCP_TOKEN>"
            }
        }
    }
}

Here, replace:

<your-n8n-domain>: Your n8n base URL (shown on the Instance-level MCP page)
<YOUR_N8N_MCP_TOKEN>: Your generated token

Connecting Codex CLI to n8n MCP server#

Add the following entry to your ~/.codex/config.toml file:

[mcp_servers.n8n_mcp]
url = "https://<your-n8n-domain>/mcp-server/http"
http_headers = { "authorization" = "Bearer <YOUR_N8N_MCP_TOKEN>" }

Here, replace:

<your-n8n-domain>: Your n8n base URL (shown on the Instance-level MCP page)
<YOUR_N8N_MCP_TOKEN>: Your generated token

Connecting Google ADK agent to n8n MCP server#

Here's sample code to create an agent that connects to a remote n8n MCP server:

from google.adk.agents import Agent
from google.adk.tools.mcp_tool import McpToolset
from google.adk.tools.mcp_tool.mcp_session_manager import StreamableHTTPServerParams

N8N_INSTANCE_URL = "https://localhost:5678"
N8N_MCP_TOKEN = "YOUR_N8N_MCP_TOKEN"

root_agent = Agent(
    model="gemini-2.5-pro",
    name="n8n_agent",
    instruction="Help users manage and execute workflows in n8n",
    tools=[
        McpToolset(
            connection_params=StreamableHTTPServerParams(
                url=f"{N8N_INSTANCE_URL}/mcp-server/http",
                headers={
                    "Authorization": f"Bearer {N8N_MCP_TOKEN}",
                },
            ),
        )
    ],
)

For more details, see Connect ADK agent to n8n.

Troubleshooting#

If you encounter issues connecting MCP clients to your n8n instance, consider the following:

Ensure that your n8n instance is publicly accessible if you are using cloud-based MCP clients.
Verify that the MCP access is enabled in n8n settings.
Check that the workflows you want to access are marked as available in MCP.
Confirm that the authentication method (OAuth2 or Access Token) is correctly configured in your MCP client.
Review n8n server logs for any error messages related to MCP connections.
If you are using desktop MCP clients, make sure you have the latest Node.js version installed.
